Supermarket Refrigerated Showcase
Comprehensive Selection of Supermarket Refrigerated Displays
AEON MALL KUCHING
MYDIN PETRA JAYA KUCHING

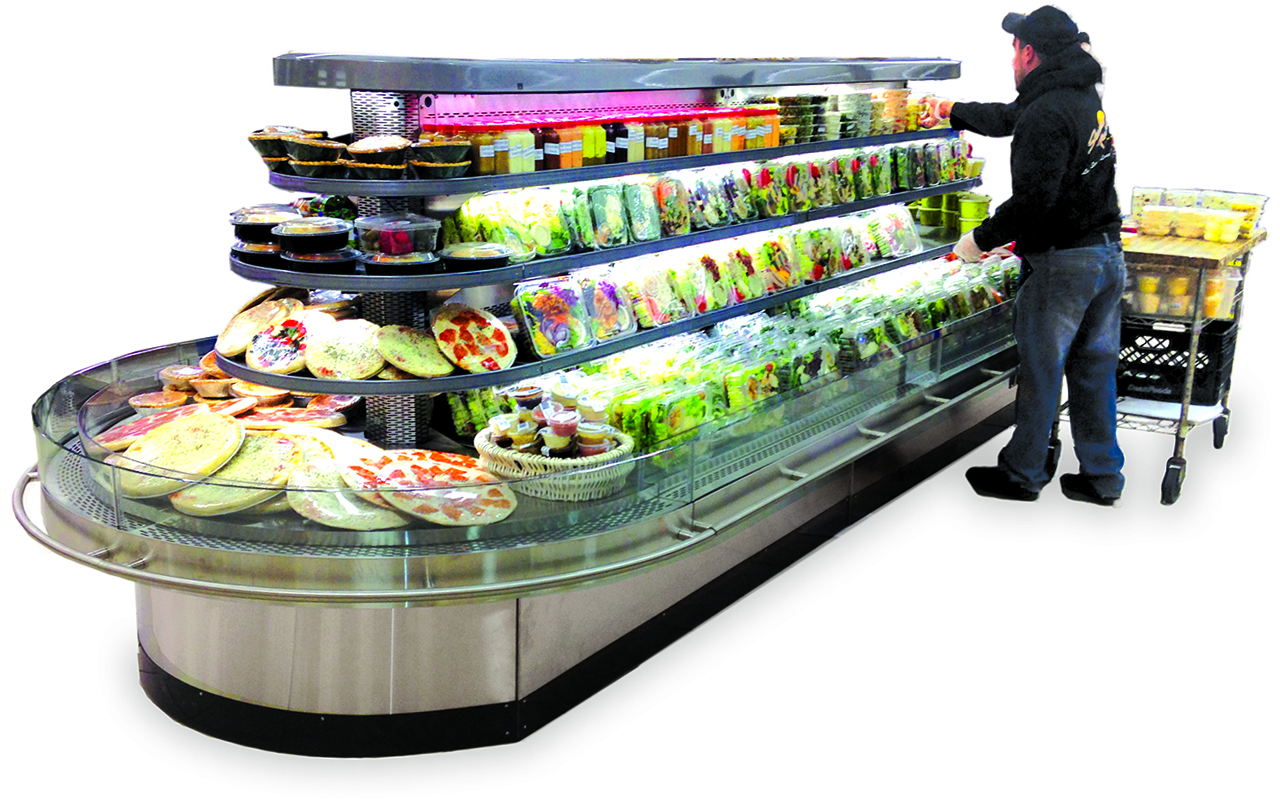

Refrigerated Showcase 4 Level (Display Case)
Model: TY4-5 Self-Service Merchandiser for Deli, Dairy, Sandwiches, Cheese, Grab-n-Go, Beverage and Produce
- 7' (TY4-5X-7I-R)
- 9' (TY4-5X-9I-R)
- 11' (TY4-5X-11I-R)
- 13' (TY4-5X-13I-R)
- 15' (TY4-5X-15I-R)
- 17' (TY4-5X-17I-R)
Painted exterior
Radius perimeter
LED EcoShine II canopy lighting
Black metal deck and back wall
2″ black vinyl cart bumper
Energy efficient fan motors.
Dual forced air refrigeration coils
Easy to clean
Options Include
Special stainless steel tube bumper 8″, 10″, 12″, 14″ shelves
Optional base heights
LED shelf lighting
Solid surface top inlay
Stainless or white interior
Liquid line shut-off valve

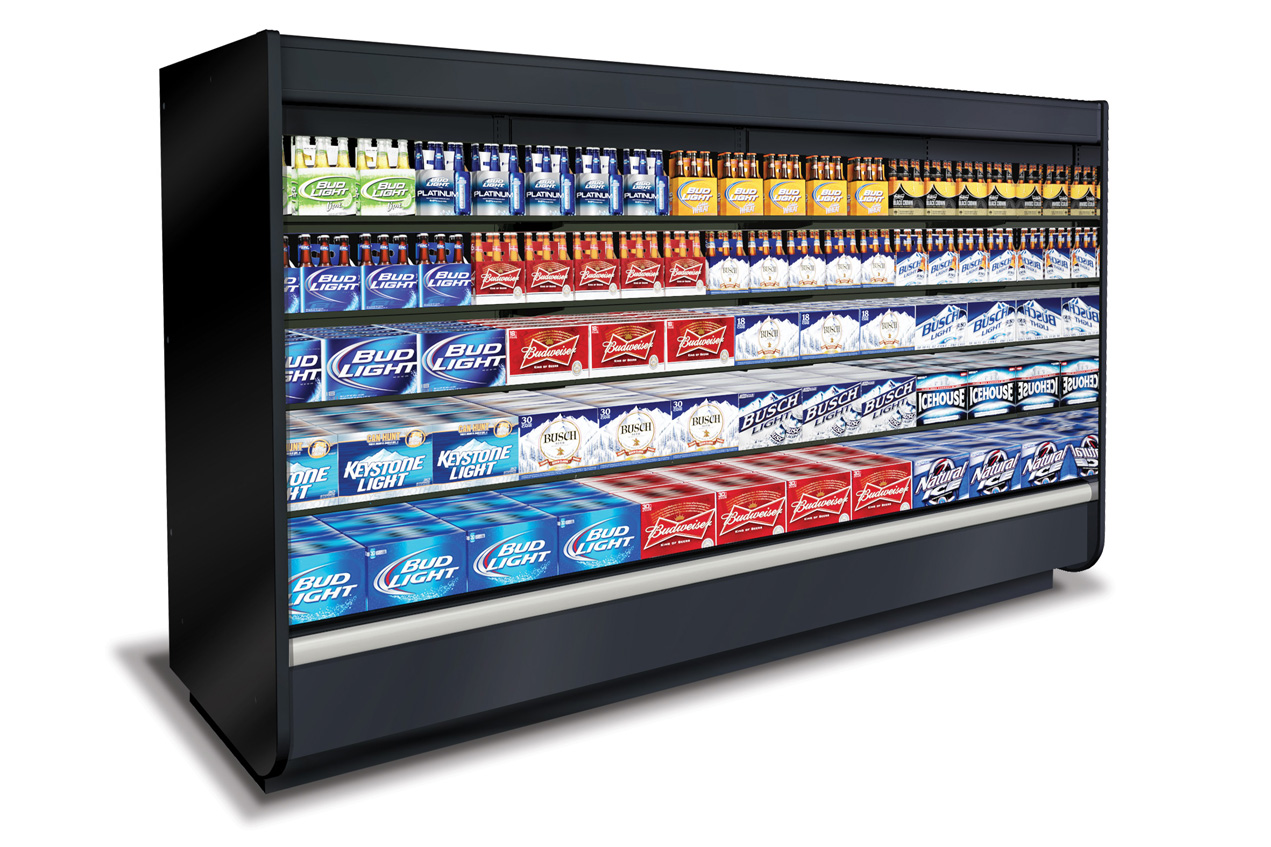

Refrigerated Showcase 5 Deck ( Display Case)
Model: B5XEC-L Bulk, 5-Deck, Excel, Extended Canopy, Low Front Available in 8’ and 12’ lengths. Contact our sales rep for information on possible availability of additional case lengths.
Extended Depth for Bulk Applications
The B5XEC-L high volume multi-deck has an extended canopy and low front for high visibility bulk merchandising. It is 4-inch deeper (front to back) than our standard Excel multi-deck fixtures for maximum pack-out of bulk medium temperature items.
Extended Depth for Bulk Applications
EcoShine LED lights provide bright, even illumination of products with lower energy costs.
Longer Shelf Life
Modular coils and off-time defrost work to reduce thermal shock and stabilize product temperatures.
Lower Labor Costs
Labor-saving features include greater clearance under the case, easy-to-clean “bathtub” bottom with no coil in the bottom of the case, good raceway access, 2-ft honeycomb sections and more.
Superior Reliability
Our five-year modular coil warranty is the best available

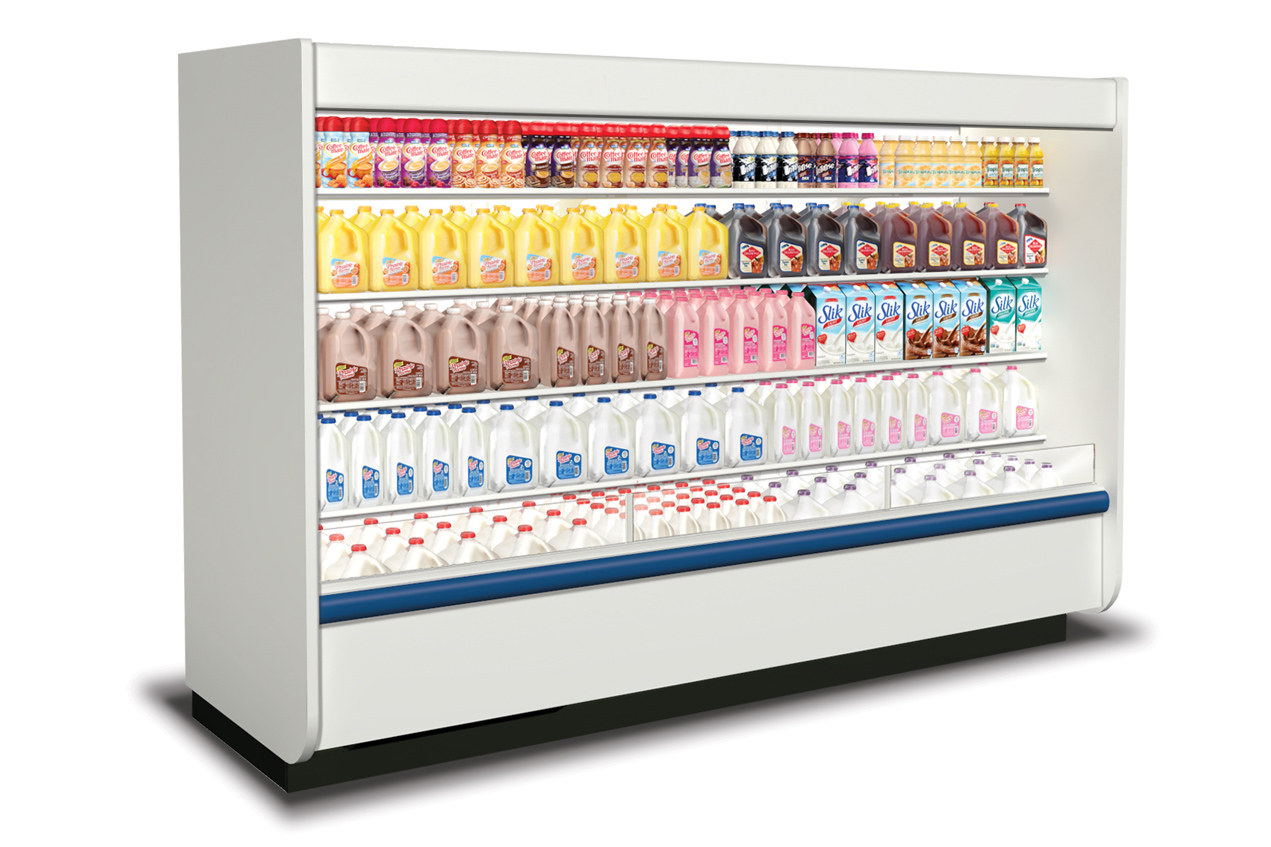

Refrigerated Showcase 5 Deck ( Display Case)
Model: D5X-GE Dairy, 5-Deck, Excel, Glass Front, Energy Efficient Coil. Available in 8’ and 12’ lengths.
Superior Merchandising
The D5X-GE was designed to help you merchandise and sell. Superior display features include optional full vision glass ends, improved ledge lighting, greater shelf placement flexibility and more. Streamline and Contour styling available.
Lower Energy Costs
Excel D5X cases come with energy efficient “E” coils as standard. Night curtains can be added to help trim about 12.6% more off your energy costs for this case.
Superior Shelf Life
Modular coils and off-time defrost work to reduce thermal shock and stabilize product temperatures. Modular defrost (optional) can further stabilize temperatures.

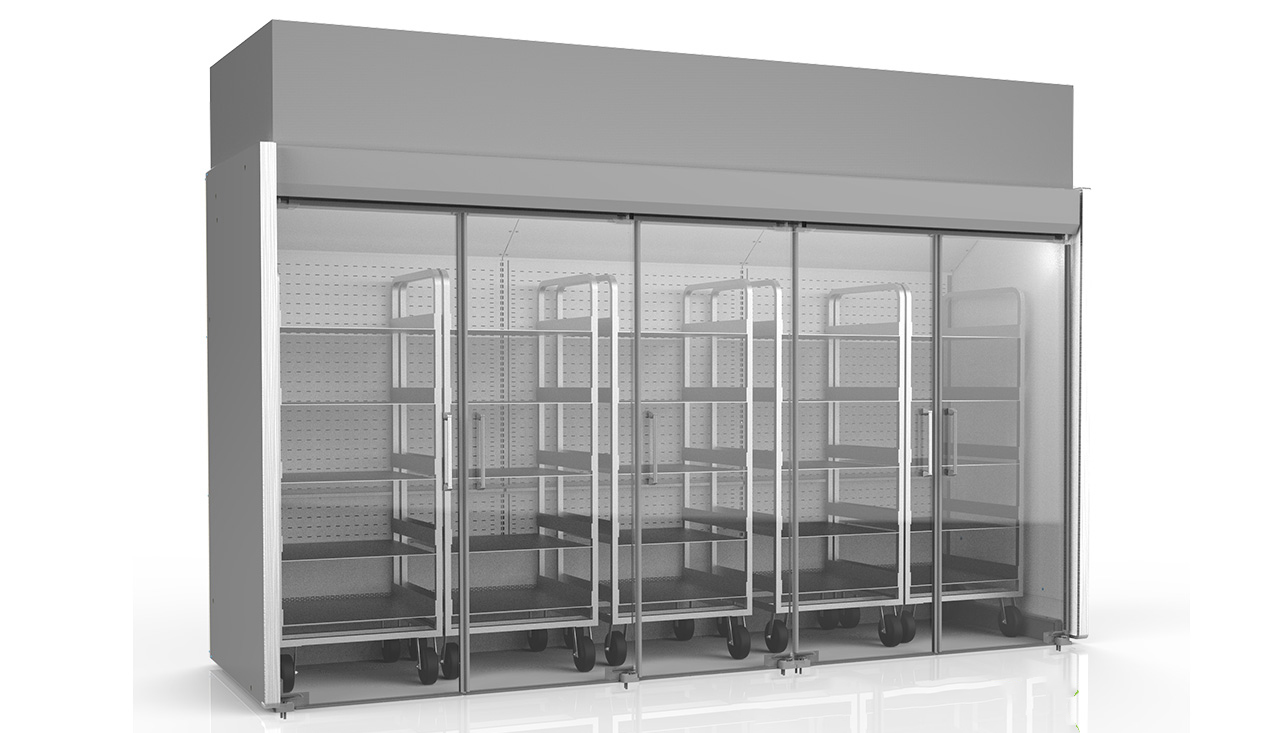

Refrigerated Showcase Multi-Deck 5 Doors
Model: DD5X5FRW. Only available with 5 doors.
Ideal for any medium temperature, high volume deli, dairy or beverage products
Environmentally-friendly R290 hydrocarbon refrigerant that has zero ozone depletion potential and 3 GWP (Global Warming Potential)
Merchandiser rejects heat through a continuous flow water-loop system at store level
Water-loop system operates with cooling water between 50° and 115°F inlet temperature
UL/EPH and DOE 2017 certified
Available with Hussmann EcoVision II glass doors for better product visibilty
Standard LED lights reduce relamping and other maintenance costs
No heat required in doors or frames
Energy efficient coils standard
CoreLink controller remote performance monitoring available
Refrigerated Showcase with Lids
Hussmann is now offering sliding glass lids for single deck island merchandisers. These lids save up to 60% in case energy costs, while enhancing merchandising appeal with sleek, curved glass design. The scratch resistant glass helps stabilize product temperatures, resulting in better product integrity.
For field installed upgrades or on original equipment
Upgrade and original equipment lids are available and have been designed to fit all Excel single deck islands for frozen food, ice cream and medium temp applications, including FW, FWG, FWE, FWEG, FI, FIG, FN, FNG, F, and FG. Rebates or incentives may be available from your local utility company for upgrading existing equipment.- F-L (Frozen Lids)
- FG-L (Frozen Glass Front Lids)
- FI-L (Frozen Island Lids)
- FIG-L (Frozen Island Glass Front Lids)
- FN-L (Frozen Narrow Island Lids)
- FNG-L (Frozen Narrow Island Glass Front Lids)
- FW-L (Frozen Wide Island Lids)
- FWG-L (Frozen Wide Island Glass Front Lids)
- FWGHL (Frozen Wide Island Glass Front High Lids)
- FWE-L (Frozen Wide Island End Case Lids)
- FWEG-L (Frozen Wide Island End Case Glass Front Lids)
- FWEGHL (Frozen Wide Island End Case Glass Front High Lids)
Superior energy efficiency in a frozen island
More merchandising capacity than Impact
Excellent temperature consistency and stability throughout the display zone due to Hussmann’s proprietary discharge air louvers and continuous tube serpentine coils
High visibility
Good clearance under case for easy cleaning
Easy raceway access and simplified wiring
Various paint and bumper colors
Sliding Glass lids
